Loveless screws - Brass screws / Stainless steel screws

Convenient screw assembly system and cylinder nuts.

Designed and developed by Robert Waldorf Loveless, the world-famous American cutlery, this assembly system judiciously replaces the traditional rivets with rosette to mount the knife sleeves with full silk fixed blade.

The mounting becomes easier, more precise and the screw clamping of the collar pads better controlled by avoiding possible incidents due to repeated hammering on the rivets.

How does it work?

This Loveless screw assembly system does not require a hammer.

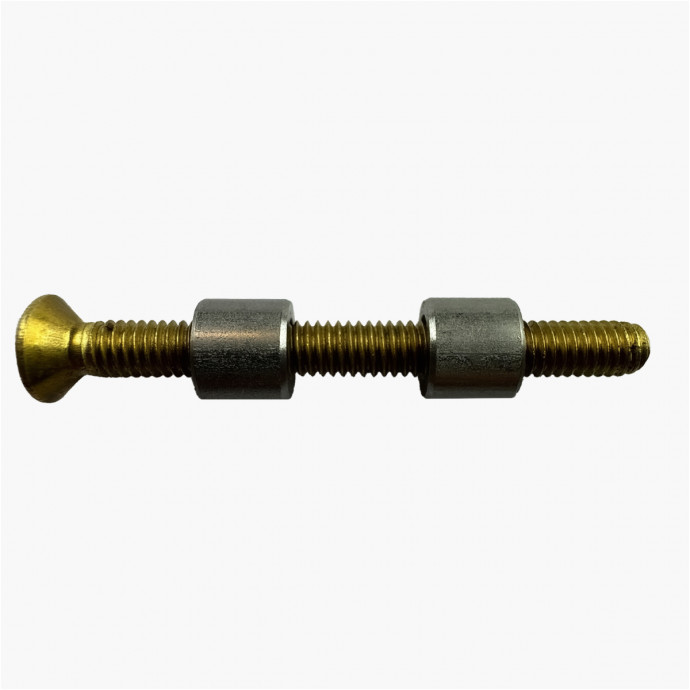

This screwdriver consists of a screw of Ø4 mm x 40 mm in length and 2 screwdriver nuts Ø7 mm x 6 mm in length.

After piercing the pads of the handle for the screw passage, drill again the pads at a very slightly smaller diameter than the nuts of Ø7 mm with a maximum depth of 6 mm to make the housings of the two cylinders. The two cylinder nuts shall be kept sufficient to prevent them from turning at tightening, but without excess to avoid undue stress on the sleeve pads.

Screw one of the cylinders until you come in a stop on the screw head, then engage the whole on one side of the handle.

Then position the second cylinder on the other side of the handle and tighten with a cruciform screwdriver to the contact and block the assembly moderately but firmly.

All you have to do now is cut the screw head on one side and the screw part that passes on the other side of the handle, sand and polish the whole for a robust and permanent mounting.

This convenient Loveless assembly system allows mounting all types of knife sleeves up to 40 mm thick.

The aesthetics on the date.

After sanding and polishing, this Loveless brass screws screws and stainless steel nuts combine the brilliance of stainless steel with the golden reflections of the brass for an aspect of rivet to the old, perfectly circular, steel wire and rosettes avoiding any risk of rupture following a shock, for example.
